Product Details:
Payment & Shipping Terms:
|
| Name: | Excavator Road Ripper | CertifiPCion: | ISO9001 |
|---|---|---|---|
| Suitable Excavator: | 1- 8 Ton Excavator | Plate Thickness: | 50mm-120mm |
| AppliPCion: | Digging And Loading Of Hardpan | Warranty: | 6 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
| High Light: | Excavator Road Ripper,5 Ton Excavator Road Ripper,EC80 Excavator Road Ripper |
||

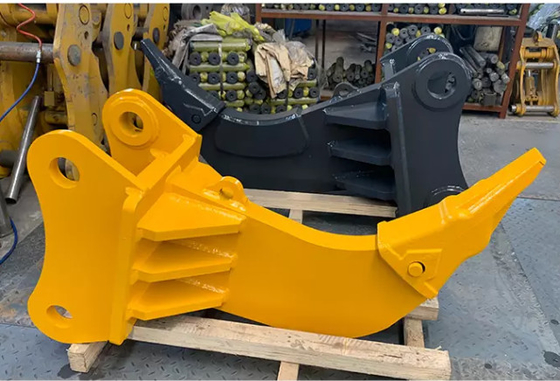

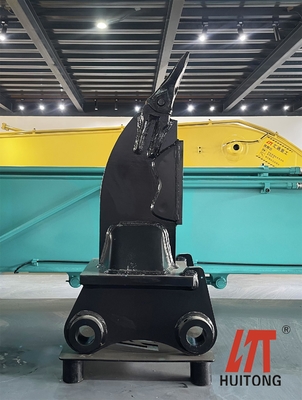

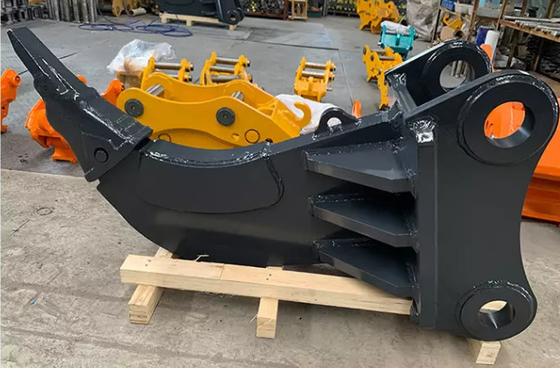

3 Ton 5 Ton 8 Ton Excavator Ripper Mini Road Ripper For Volvo EC50 EC80
Product Descrption
Huitong Excavator Stump Ripper, It is Suitable for the Crushing and Splitting of Hard Soil, Sub-hard Rock, and Weathered Rock, so as to Facilitate the Excavation and Loading Operations with a Bucket. NM400 material used in this plate to ensure the using life.Ripper is made of high strength steel plate ,easy to use and install. It easy for digging and loading. 1-3 teeth available ,strong digging capacity
AppliPCion: Our Excavator ripper can be used for breaking up rock,hard soil, frozen ground,stone and land waste,so that the bucket can be digging and loading
Characteristic: Installed with high strength ripper teeth,strong digging capacity. Convenience for digging and loading at the same time,high efficiency
Excavator Brands: The products we offer are fitted for all of the world famous excavator brands,such as Kobelco, Hitachi, Sany, Volvo, XGMG,
Takenchi and so on.
| Model | HT-15 | HT-25 | HT-35 | HT-45 | HT-55 | HT-65 | HT-75 | |
| A: Pin to Pin Distance | mm | 265 | 310 | 390 | 465 | 520 | 570 | Customized |
| B: Overall Width | mm | 375 | 420 | 570 | 665 | 740 | 820 | 820 |
| C: Overall Height | mm | 390 | 950 | 1180 | 1260 | 1380 | 1470 | 1520 |
| D: Pin Diameter | mm | 40-50 | 50-55 | 60-70 | 70-80 | 80-90 | 80-90 | 90-110 |
| E: Dipper Width | mm | 150-180 | 180-200 | 200-315 | 300-350 | 360-420 | 360-420 | 400-500 |
| Plate Thickness | mm | 50 | 55 | 65 | 80 | 90 | 90 | 90 |
| Weight | kg | 60 | 160 | 245 | 420 | 620 | 775 | 825 |
| Suit Excavator | ton | 4-6 | 5-9 | 9-16 | 16-23 | 23-30 | 30-39 | 40-4 |
Product SpecifiPCion
