Product Details:
Payment & Shipping Terms:
|
Color: | Customer Required | Name: | Excavator Ripper |
---|---|---|---|
CertifiPCion: | ISO9001 | Suitable Excavator: | 10-30 Ton |
Oem: | Excavator Bucket Ripper | Plate Thickness: | 50mm-120mm |
Type: | One Teeth /two Teeth /three Teeth | AppliPCion: | Digging And Loading Of Hardpan |
High Light: | Volvo EC60 Road Ripper,Excavator Vibro Road Ripper,EC80 Excavator Ripper |

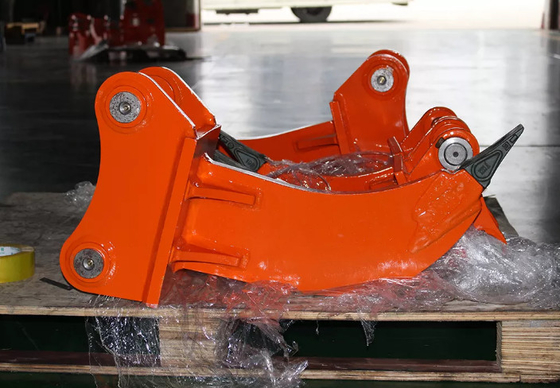

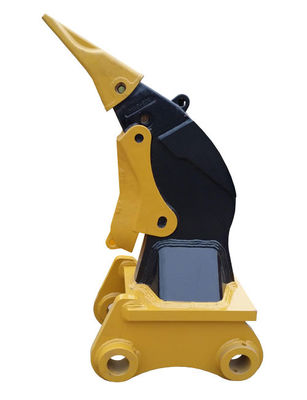

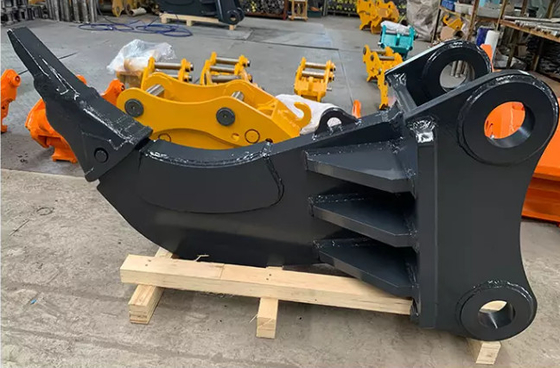

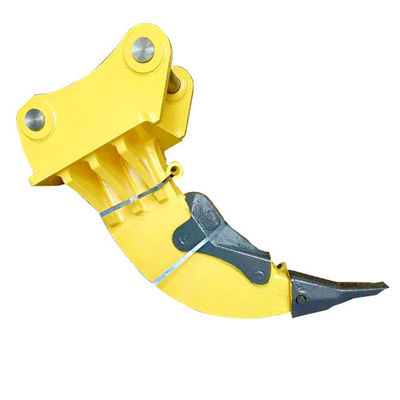

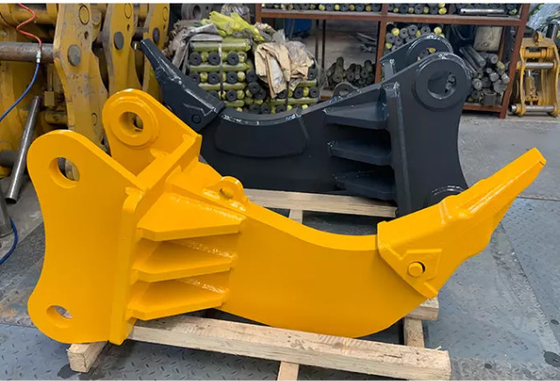

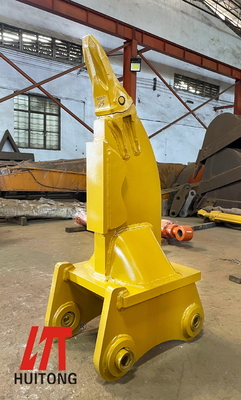

Road Ripper Mini 5-15 Ton Excavator Vibro Ripper For Volvo EC60 EC80 EC130
Product Descrption
Huitong Excavator Road Ripper ,made of high strength steel plate, easy to stall and use. Fitted heavy-duty replaceable tooth to ensure the best results and wear resistance.
Comparatively speaking, Excavator ripper has stronger cuting power. It's highlyl efficient when it came to break hard ground, freezing ground or other hard-packed material. Moreover, multi-teeth ripper is also available.
Features
1. Changeable equipment enables for crushing and digging.
2. Made of high strength steel plate, easy to use and install .
3. Suitable for crushing hard rocks, secondary solid rocks and weathered granite, easy for excavator to dig and load.
4. Normally, one ripper tooth, also could customize two or three teeth, strong digging capacity.
Item/Model
|
Unit
|
HT 02
|
HT 04
|
HT 06
|
HT 08
|
HT 10
|
HT 14
|
HT 17
|
Suitable Excavator
|
ton
|
4-6
|
5-9
|
9-16
|
16-23
|
23-30
|
30-39
|
40-49
|
A:Pin to Pin Distance
|
mm
|
265
|
310
|
390
|
465
|
520
|
570
|
610
|
B:Overall Width
|
mm
|
375
|
420
|
570
|
665
|
740
|
820
|
820
|
C:Overall Height
|
mm
|
390
|
950
|
1180
|
1260
|
1380
|
1470
|
1520
|
D:Pin Diameter
|
mm
|
40-50
|
50-55
|
60-70
|
70-80
|
80-90
|
80-90
|
90-110
|
E:Dipper Width
|
mm
|
150-180
|
180-200
|
200-315
|
300-350
|
360-420
|
360-420
|
400-500
|
Plate Thickness
|
mm
|
50
|
55
|
65
|
80
|
90
|
90
|
90
|
Teeth Model
|
type
|
DH55
|
DH150
|
DH220
|
D85C
|
4T5502-2
|
4T5502-2
|
4T5502-2
|
Weight
|
kg
|
60
|
160
|
245
|
420
|
620
|
775
|
825
|
Product SpecifiPCion
