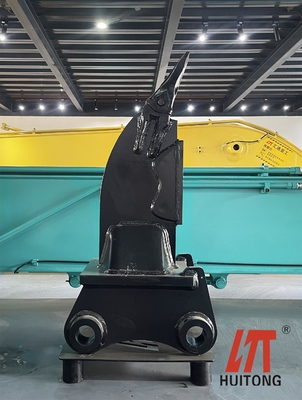

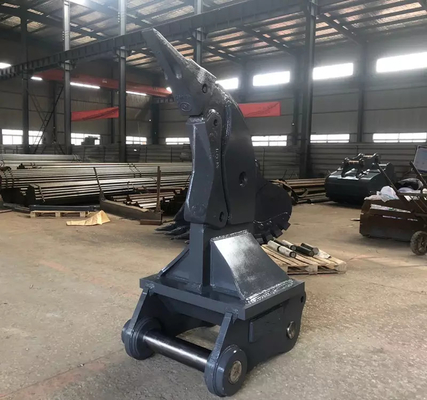

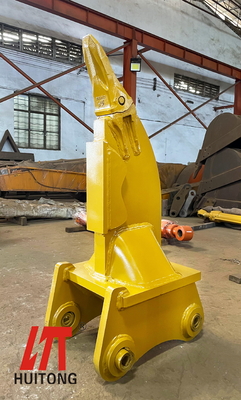

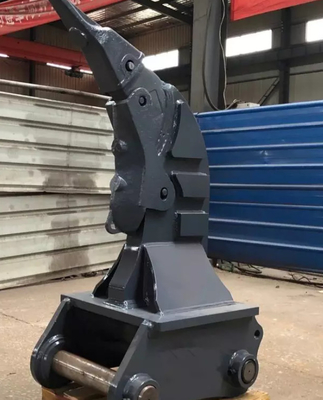

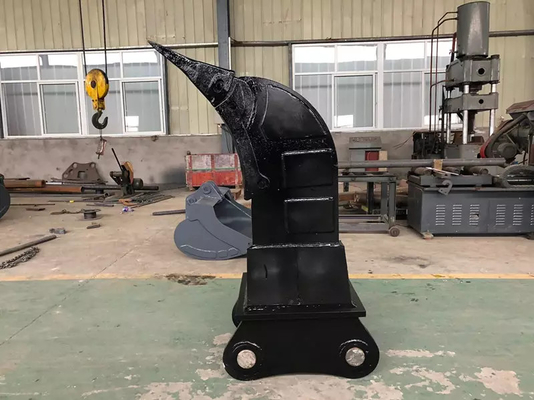

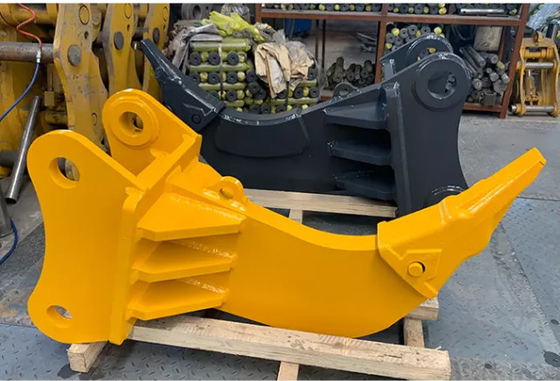

Excavator Shank Ripper Hydraulic Rock Ripper For Case CX120 CX160 CX200
Product Descrption
Huitong Excavator Rock Ripper,is made with high-quality material (Q345b) provide high steel toughness and good abrasive resistance. Ripper tooth is made of NM400 special material which surfaces Brinell hardness can reach 400HB and its mechanical property is 3-5 times better than the normal steel sheet’s.
The high strength board mounted in front of the ripper can protect the ripper body from damage. Ripper teeth can be changed easily. Suitable for different work conditions: help excavator to break and dig at the same time. Widely used for smash and split: hard soil, pavement, flint , weathered granite.
Model | Ton Range | Width A (mm) | Height H (mm) | R (mm) | Length B (mm) | Weight (kgs) | Tine Thickness | Teeth | Material |
HT -MINI | 1-3T | 240 | 470 | 450 | 320 | 45 | 35 | J220 | Q345 |
HT-40 | 3-5T | 280 | 530 | 480 | 360 | 55 | 35 | J220 | |
HT-50 | 5-8T | 290 | 600 | 550 | 410 | 65 | 40 | J-250 | |
HT-80 | 8-12T | 345 | 720 | 642 | 492 | 135 | 50 | J-250 | |
HT-120 | 12-16T | 410 | 1065 | 1030 | 760 | 266 | 60 | 1U3352RC | Q345 + NM400 |
HT-200 | 18-23 | 533 | 1365 | 1267 | 862 | 510 | 80 | D8 4T5451 | |
HT-250 | 23-29T | 580 | 1406 | 1306 | 850 | 610 | 80 | D8 4T5451 | |
HT-300 | 30-36T | 636 | 1541 | 1452 | 930 | 836 | 100 | D9 4T5502 |
