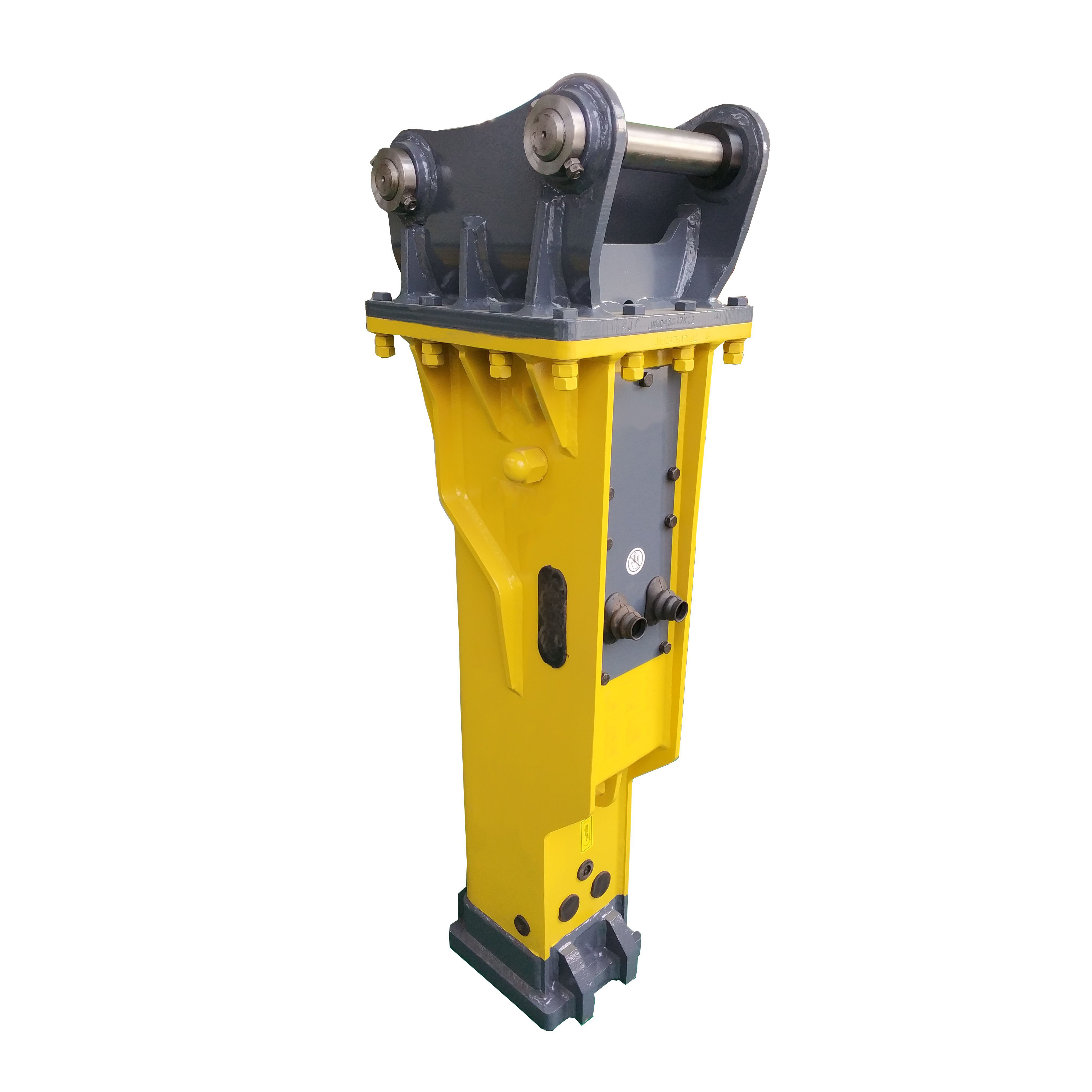

HUITONG Hydraulic Rock Breaker And Hydraulic Hammer For 20 Tons Excavator
Product AppliPCion
HUITONG Hydraulic Hammer is abbreviated as "Breaker".It is fit for various kinds of excavators.
The power source of the hydraulic breaker is the pressure provided by the excavator,loader or pumping station. It can crush stones and rocks more effectively in engineering construction and improve work efficiency. The principle of selecting a hydraulic breaker is to select the most suitable hydraulic breaker according to the model of the excavator and the operating environment.
Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
1. Selected raw material - high quality heavy duty wear resistant steel.
2. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
3. The device can adjust the flow fromexcavator and power source, so it can adjust the impact force and beat frequency according
to different working situation.
4. High-quality and durable wear parts ,longer use, easy maintenance.
5. Strong " hydraulic + nitrogen " impact system, increase stability.
6. Advanced manufacturing facilities and technology, introduced from South Korea.
7. High energy and impact frequency, High-performance optimized hydraulic unit.
Box Type Side Type Top Type
1.Reduce noise 1.Overall length shorter 1.Easy to loPCe and control
2.Protect the environment 2.Hook back things conveniently 2.More conducive to excavator
3.Maintenance-free 3.Weight lighter, lower risk of broken drill rod
|
||||||||||||||||||||||||||||||||||
|
HYDRAULIC BREAKER SPECIFIPCIONS
|
||||||||
|---|---|---|---|---|---|---|---|---|
|
HT Model
|
Operating Weight (kg)
|
Required Oil Flow (L/Min)
|
Working Pressure (Bar)
|
Impact Rate (Bpm)
|
Chisel Diameter (mm)
|
Hose Diameter (inch)
|
Carrier weight (ton)
|
Valve Ass'y Position (/)
|
|
HT450
|
150
|
20-40
|
90-120
|
700-1200
|
45
|
1/2
|
1.2-3
|
Internal
|
|
HT530
|
190
|
25-45
|
90-120
|
500-1100
|
53
|
1/2
|
2.5-3
|
Internal
|
|
HT680
|
340
|
36-60
|
110-140
|
500-900
|
68
|
1/2
|
3-7
|
Internal
|
|
HT750
|
480
|
50-90
|
120-170
|
400-800
|
75
|
1/2
|
6-9
|
Internal
|
|
HT850
|
580
|
45-85
|
127-147
|
400-800
|
75
|
3/4
|
7-14
|
Internal
|
|
HT1000
|
950
|
80-120
|
150-170
|
400-650
|
100
|
3/4
|
10-15
|
Internal
|
|
HT1350
|
1650
|
130-170
|
160-185
|
400-650
|
135
|
1
|
18-25
|
Internal
|
|
HT1400
|
2000
|
150-190
|
165-195
|
400-800
|
140
|
1
|
20-30
|
Internal
|
|
HT1550
|
2900
|
150-230
|
170-200
|
400-800
|
155
|
1
|
27-36
|
Internal
|
|
HT1650
|
3250
|
200-260
|
180-200
|
250-400
|
165
|
5/4
|
30-45
|
Internal
|
|
HT1750
|
4150
|
210-280
|
180-200
|
250-350
|
175
|
5/4
|
40-50
|
Internal
|
|
HT1800
|
4200
|
280-350
|
190-210
|
230-320
|
180
|
5/4
|
45-55
|
Internal
|
|
HT1900
|
4230
|
280-350
|
190-210
|
230-320
|
190
|
5/4
|
50-60
|
Internal
|
FAQ
1. ARE YOU A FACTORY OR TRADING COMPANY?
We are manufacturer based in Guangzhou, China where near to Hongkong. We've been in the industry since 2011, and we've gained the export certifiPCion, which means we could export with lower cost. Feel free to let our sales know ahead, if you planed for paying a visit to our factory. Also, you can know more about Huitong at the About Page.
2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?
We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2011. And also, we've got an mature technical team ready to discuss your unique requirements with you.
3. IS YOUR DELIVERY ALWAYS ON TIME?
We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.
4. WHY DON'T YOU HAVE A CE CERTIFIPCIONS?
Ce certifiPCion is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifiPCions registration process, in order to save our customers' time in the furture. By the way, there are many products with fake CE CertifiPCion on the market, please be awared with that to avoid unnecessary problems.
5. HOW AM I START ORDERING?
First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.
6. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?
Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
